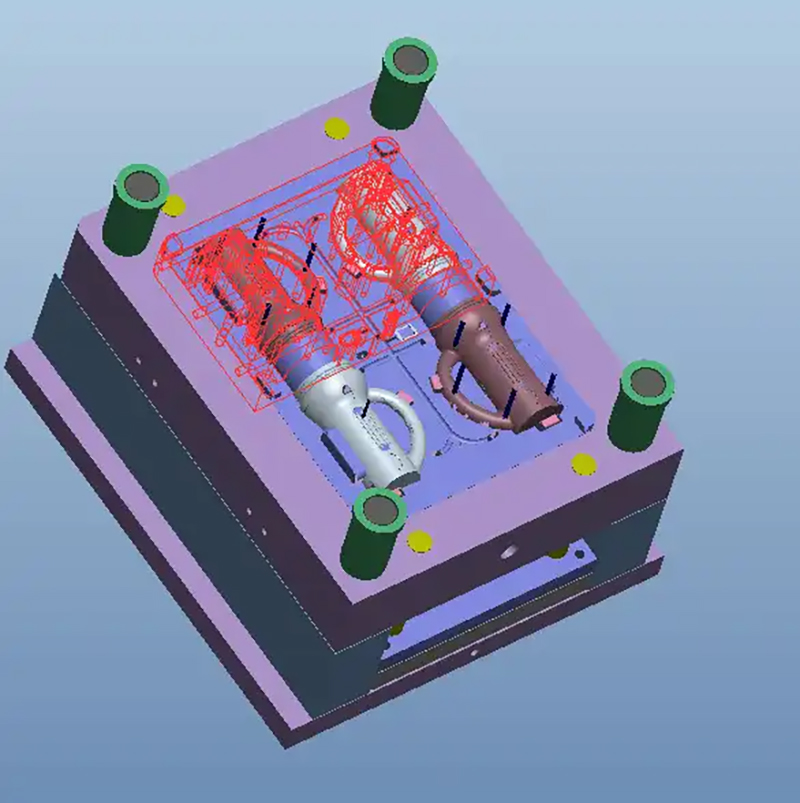

Chinese Outdoor Kettle Injection Mold
1.Unparalleled Durability: Crafted from premium hardened steel for exceptional longevity and resistance to wear, ensuring a massive production lifespan.
2.High-Precision Manufacturing: Enables the production of kettles with ultra-tight tolerances, guaranteeing perfect thread engagement and a leak-proof spout.
3.Innovative, User-Centric Design: Facilitates the creation of ergonomic kettles with secure handles and anti-slip textures.
| Material | PP, PE, Tritan, TPU | Model No | SMG-M-0006 |
| Color | Customized | Style | OEM |
| Origin | China | Package | customized |
| Size | OEM | Logo | customized |
Crafting the Wild: Your Premier OEM Partner for High-Performance Outdoor Kettle Molds
1. Introduction: Where Adventure Meets Precision Engineering
For the modern adventurer, a kettle is more than just a container; it's a vital piece of gear for hydration, cooking, and survival. It must be tough, lightweight, reliable, and ergonomic. At Samgo, we understand this profoundly. We don't just manufacture molds; we engineer the very foundation of your next best-selling outdoor kettle. We are a specialized OEM partner, dedicated to transforming your innovative designs into high-precision, durable, and mass-producible realities that are built for the wild.
2. Product Overview: The Anatomy of an Unbeatable Outdoor Kettle Mold
Our outdoor kettle mold series is the culmination of advanced engineering, material science, and a deep understanding of outdoor needs. It is designed to produce kettles that stand up to extreme conditions, from the freezing altitudes of mountaineering to the rugged trails of backpacking.
Core Philosophy: Durability, Functionality, and Efficiency.
Target Products: Lightweight trekking kettles, versatile camping kettles with integrated lids, and durable, wide-base kettles for stable heating over a campfire.
3. Key Product Highlights & Outdoor Advantages
Highlight 1: Extreme Environment Durability
Mold Core: Manufactured from premium H13 Hot-Work Steel (or Stavax ESR for supreme finish), hardened to HRC 48-52. This ensures exceptional resistance to wear, corrosion, and thermal fatigue.
Outdoor Advantage: Produces kettles with uniform wall thickness and structural integrity, preventing cracks or failures under physical impact or rapid temperature changes.
Highlight 2: Ultra-Precision for Leak-Proof Performance
Technology: CNC machining and EDM achieve mirror-level finishes and tolerances within ±0.05mm.
Outdoor Advantage: Guarantees perfect screw threads for a 100% leak-proof seal and seamless spout integration, keeping contents safe in a bouncing backpack.
Highlight 3: Ergonomic & Versatile Design Flexibility
Modular Design: Our mold architecture allows for interchangeable components. We can easily integrate features for foldable handles, integrated lids with locks, and multi-material over-molding.
Outdoor Advantage: Enables user-centric designs that outdoor enthusiasts demand: easy to carry, secure to use, and space-saving.
Highlight 4: Optimized for High-Efficiency Production
Systems: Standard high-performance hot runner systems and advanced conformal cooling channels.
OEM Advantage: Reduces cycle time, minimizes material waste and part warpage, allowing you to scale production rapidly and cost-effectively.
4. Our Comprehensive OEM Services: Beyond the Mold
Phase 1: Co-Design & Engineering Consultation
DFM (Design for Manufacturability) Analysis.
Material Selection Guidance for food-grade, BPA-free, heat-resistant polymers.
Phase 2: Prototyping & Validation
Rapid Prototyping (3D printing, CNC) for functional testing.
Digital Mold Flow Analysis to predict and prevent manufacturing defects.
Phase 3: Precision Manufacturing & QC
Full Process Documentation for traceability.
In-process Inspection using CMM (Coordinate Measuring Machine) and high-precision tools.
Phase 4: Post-Sales & Lifelong Support
Comprehensive Maintenance Training for your production team.
Lifelong Technical Support & Guaranteed Spare Parts Supply.
5. Technical Specifications Table
| Category | Specification | Description & Benefit |
|---|---|---|
| Mold Base Material | 1050/718 Pre-hardened Steel (Standard) | Robust and stable foundation for mold core and cavity. |
| Mold Core/Cavity Material | H13 Hot-Work Steel (Standard); Stavax ESR (Premium) | Standard: Excellent toughness. Premium: Superior polishability for a mirror-finish. |
| Hardness (HRC) | 48-52 | Ensures long-term durability and resistance to wear. |
| Tolerance | ±0.015mm ~ ±0.05mm | Guarantees consistent part dimensions and perfect sealing. |
| Surface Finish | SPI-SPE A-1 (Mirror Finish) / Texture available | Glossy surface or textured grip to hide scratches. |
| Runner System | Hot Runner (Standard) | Reduces waste, shortens cycle time, enables automation. |
| Lifespan (Shots) | 1,000,000+ | Maximizes ROI and ensures consistent quality over high volumes. |
| Ejection System | Ejector Pins, Sleeves, Stripper Plate | Smooth, damage-free ejection of complex kettle geometry. |
6. Material Guide for Outdoor Kettles
| Material | Key Characteristics | Ideal For | Our Mold Compatibility |
|---|---|---|---|
| Polypropylene (PP) | Lightweight, chemical resistance, cost-effective. | Budget-friendly, lightweight trekking kettles. | Excellent - easy flow, low stress. |
| Tritan™ Copolyester | Clarity, high impact strength, BPA-free, odor resistance. | Premium kettles where aesthetics and toughness are key. | Excellent - requires good polish and cooling. |
| PPSU (Polyphenylsulfone) | Medical-grade, extreme heat resistance, high strength. | Mountaineering kettles for direct flame heating. | Excellent - requires high molding temperatures. |
| Food-Grade SAN | Crystal clarity and rigidity. | See-through kettles for visual liquid level check. | Good. |
7. Why Partner With Us?
Deep OEM Expertise: We are structured to be a seamless extension of your team.
Proven Track Record: We have successfully delivered molds for leading brands in the outdoor gear industry.
A Partnership for the Long Trail: We are committed to your success from concept to mass production.
8. Let's Engineer Your Legacy
Ready to bring your next-generation outdoor kettle to life? Contact our OEM project specialists today for a free, no-obligation project consultation and quotation.
What exactly are your OEM services?
Our OEM (Original Equipment Manufacturing) service allows you to bring your unique outdoor gear ideas to life. We handle the entire product development and manufacturing process based on your specifications, designs, and brand requirements. From initial concept and material sourcing to prototyping, production, and quality control, we become your dedicated manufacturing partner. Your brand logo and identity will be applied to the final products.What is your MOQ (Minimum Order Quantity)?
We understand that brands need flexibility, especially when launching new products. Therefore, we offer flexible MOQs, which vary depending on the product complexity, materials required, and customization level. We encourage you to discuss your project with us, and we will do our best to propose a feasible MOQ.Can you help us develop a product from just an idea or a sketch?
Absolutely! We specialize in turning concepts into high-quality, market-ready products. Our product development team will work closely with you to refine your idea, select appropriate materials, create technical drawings, and develop prototypes until your vision is perfectly realized.What are the typical steps in the OEM process with your company?
1.Initial Inquiry & Consultation: You share your concept, target market, and requirements. 2.Quotation & Agreement: We provide a detailed quotation, and once approved, we sign a service agreement. 3.Research & Development (R&D): Our team works on technical designs, material selection, and sample development. 4.Prototyping: We create a physical prototype for your evaluation and feedback. 5. Molds：After design confirming, we will creat mold before production. 5.Sample Approval: You approve the final sample, confirming quality, design, and functionality. 6.Mass Production: Upon your production order confirmation, we begin manufacturing your products. 7.Rigorous Quality Control (QC): We conduct inspections throughout production and a final random inspection before shipment. 8.Shipping & Delivery: We securely pack and arrange shipment to your designated destination.How long does the entire process take from concept to delivery?
The timeline varies significantly based on product complexity and order quantity. A general estimate is: Development & Sampling: 4-8 weeks. Mass Production: 4-6 weeks after sample approval. Please note that this is an estimate, and a precise timeline will be provided with your project quotation.Who owns the intellectual property (IP) and mold/tooling for the custom products?
You retain 100% ownership of your brand identity, designs, and product IP. For any custom molds or tooling created specifically for your project, ownership can be transferred to you upon agreement. We strictly adhere to confidentiality and will never use your designs for other clients.How do you determine the price for an OEM order?
The unit price is determined by several factors, including: Product complexity and design Cost of raw materials Labor and manufacturing processes involved Order quantity Packaging requirements We strive to offer competitive pricing without compromising on quality.What is your quality control process?
Quality is our top priority. Our QC process includes: Incoming Quality Control (IQC): Inspection of all raw materials. In-Process Quality Control (IPQC): Checks during key stages of production. Pre-Shipment Inspection (PSI): A final random inspection of finished products against your approved sample and our quality standards. We can provide detailed QC reports.Can we inspect the products before they are shipped?
Yes. We highly recommend a pre-shipment inspection. You are welcome to send your own QC inspector, or you can hire a third-party inspection company to perform the check at our factory. We can also provide you with photos and videos of the production and final products.How do you handle shipping?
We have extensive experience in shipping outdoor gear globally. We can handle the logistics for you and arrange shipment via sea (for large volumes) or air (for smaller, urgent orders). We work with reliable freight forwarders to ensure a smooth process. Shipping costs will be included in your final quotation.
